"J" - (1) Required  -  $10 each

All Big Block - #8 Cylinder Ignition Wire Bracket

Bolts to right rear exhaust manifold stud.


Big Block C-Body w/HP, Big Block A-Body, & Applications where #7 Cylinder Ignition Wire runs over valve cover.

Bolts to left rear exhaust manifold stud.

"M" - (2) Required - $10 each

All Big Block  * Most Often Missed & Most Important! *

(1) Bolts under right side head bolt between cylinder #2 & #4 spark plug. Holds #4 & #6 cylinder ignition wires.

(1) Bolts under left side head bolt between cylinder #1 & #3 spark plug. Holds #5 & #7 cylinder ignition wires.

"O" - (1) Required - $12.50 each

1966-68 Big Block

Bolts under left front intake manifold gasket retaining rail screw.



"O2" - (1) Required - $14 each

1962-65 Big Block Street Wedge

Bolts under left front intake manifold gasket retaining rail screw.



"Q" - (1) Required - $12.50 each

1966-68 Big Block

Bolts under right thermostat housing retaining screw.

"Q2" - (1) Required - $12.50 each

1962-65 Big Block

Bolts under left thermostat housing retaining screw.



"R" - (2) Required - $11 each

1966-68 Big Block. Note: Some late ‘67’s used "P" instead. See 1968 kit.

(1) Bolts to right front exhaust manifold stud. Holds all right side wires except #8.

(1) Bolts to left front exhaust manifold stud. Holds all left side wires except for C-Body & Big Block A-Body.



"P" - (1) Required - $14 each

1968 Big Block. Some late 1967, all 1968.

Bolts to right front exhaust manifold stud.   Holds all right side wires except #8.



"L" - (1) Required - $8.00 each

1968-69 Big Block

Bolts under "R" , "G", or "R2" to left front exhaust manifold stud & bends in front of head.

Keeps wires away from engine head heat.

"N" - (1) Required - $10 each

1969-74 Big Block

Bolts under left front intake manifold gasket retaining rail screw.

"F" - (1) Required - $12.50 each

1969-74 Big Block

Bolts under right thermostat housing retaining screw.

"G" - (1) Required - $12.50 each

1969-74 Big Block

Bolts to left front exhaust manifold stud.   Holds all left side wires except #7 on C-Body & not used on Big Block A-Body.



"G2" - (2) Required - $12.50 each

1962-65 Big Block

(1) Bolts to left front exhaust manifold stud and holds all left side wires.

(1) Bolts to right front exhaust manifold stud and holds all right side wires.



"H" - (1) Required - $12.50 each

1969-1971 Big Block

Bolts to right front exhaust manifold stud.   Holds all right side wires except #8.

"H1" - (1) Required - $12.50 each

1972-1978 Big Block

Bolts to right front exhaust manifold stud.   Holds all right side wires except #8.


1967-69 Big Block A-Body

Bolts to left front exhaust manifold stud on top of "L" bracket. Holds all left side wires except for #7.  Always used in conjunction with an "L" bracket.

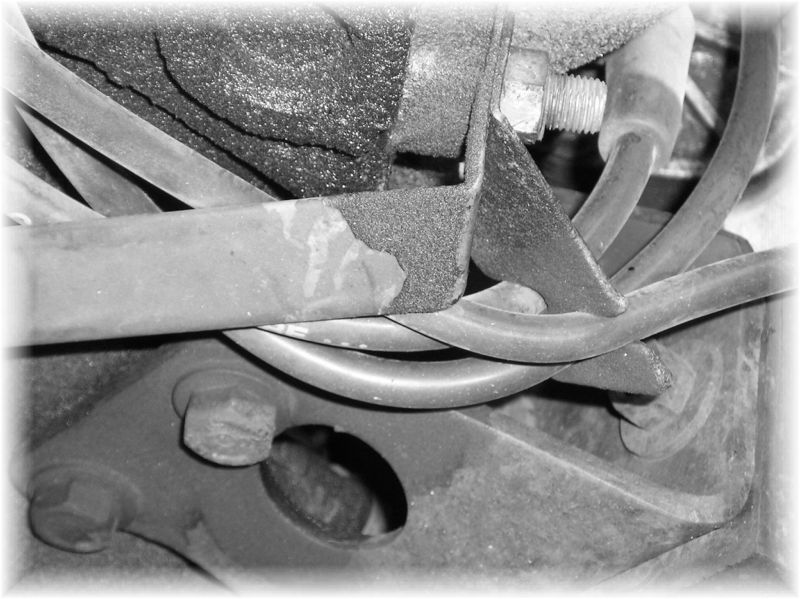

Click here to view photograph of installed "R2" bracket.

34068.jpg (3062 bytes) "34068" - Ignition Wire Bracket - $20 each

1968 340 ignition wire bracket bolts to front throttle cable bracket mounting bolt on intake manifold.  Bracket is critical in keeping ignition wires clear of throttle cable and automatic transmission kick-down linkage.   Made from correct gauge steel and thermoplastic coated as original.

Minor bending after installation may be required to ensure proper clearance of all linkage.  Check all throttle positions to ensure proper clearance and that no interference occurs.

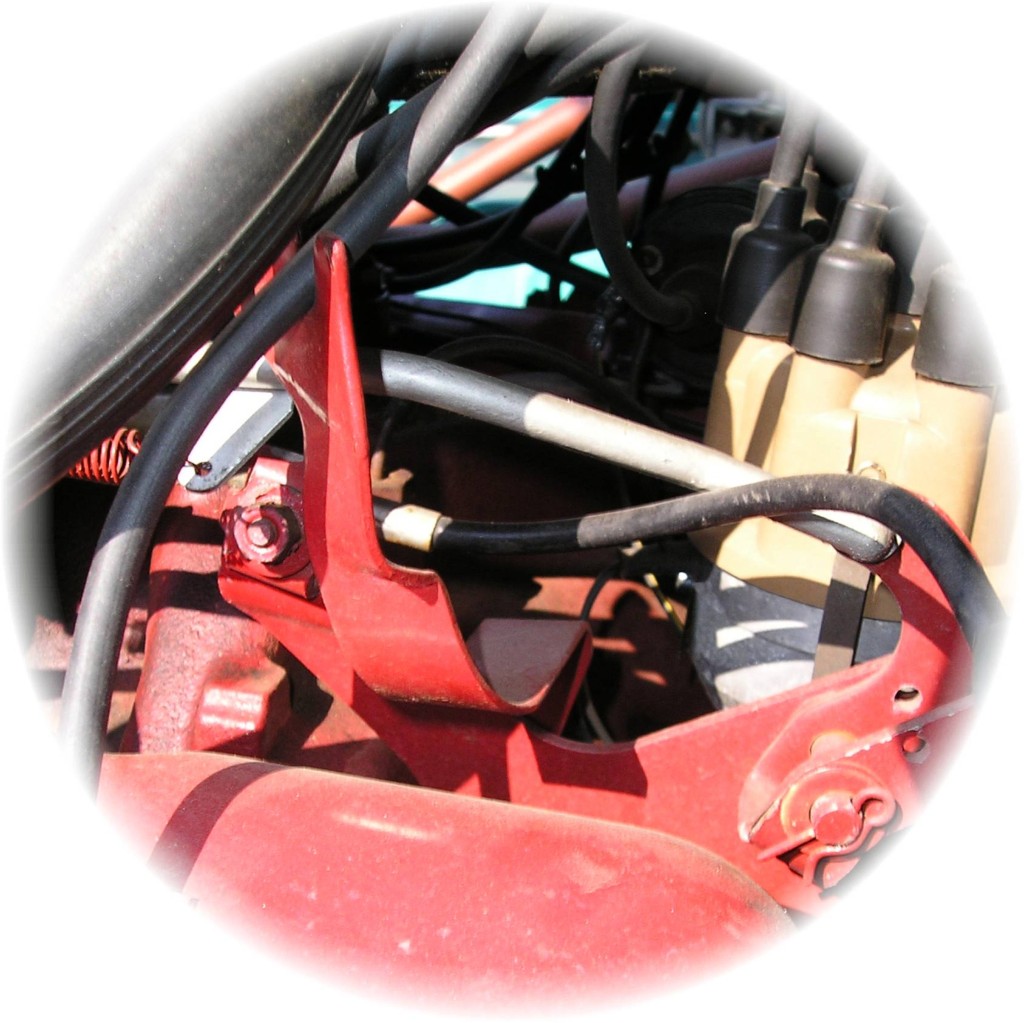

Click here to view photograph of installed #34068 bracket.




"H2E" - (1) Required  -  $14 each

1966-70 426 Hemi center wire separator bracket.  Used on all round air cleaner equipped cars including 1970 Charger.

Bolts to upper coil bracket bolt and faces forward.  Bracket does NOT get painted with engine since it is bolted in place with the coil bracket at time of assembly.




"H3" - (1) Required - $14 each

1966-70 426 Hemi left wire separator bracket.   Used on all round air cleaner equipped cars including 1970 Charger.

Bolts to front throttle return spring bracket bolt and faces forward.  Painted with engine assembly.




"H2L" - (1) Required - $14 each

1969-71 426 Hemi left wire separator bracket.  Used on all oval air cleaner and SHAKER equipped cars.

Bolts to front throttle return spring bracket bolt and faces forward.  Painted with engine assembly.




"AX005" - Ignition Wire Insulator - $2.25 each

Injection molded reproduction in correct natural nylon. Used on 273ci, big block, and Hemi engines to insulate the ignition wires from valve covers or wire routing brackets.  Used in "J" and "K" brackets.


"0599" - 4-Position Ignition Wire Insulator - $2.50 each

Injection molded reproduction in correct natural nylon.  Used on 1969 and later Big Block engines to insulate the ignition wires from wire routing brackets.

"WR35" - 1962-65 Big Block Complete Bracket Kit - $60

Kit includes one "Q2" bracket, one "O2" bracket, two "M" brackets, and two "G2" brackets.

Do not use "O2" bracket for Max Wedge applications.

wr36.JPG (10584 bytes) "WR36" - 1966-67 Big Block Complete Bracket Kit - $70

Kit includes one "J" bracket, one "AX005" insulator, one "Q" bracket, one "O" bracket, two "M" brackets, and two "R" brackets.

"K" bracket is also required if used on C-Body applications and must be purchased separately.

WR36A.jpg (7814 bytes) "WR36A" - 1967 Big Block A-Body Complete Bracket Kit - $87

Kit includes one "J" bracket, one "K" bracket, two "AX005" insulators, one "Q" bracket, one "O" bracket, two "M" brackets, one "L" bracket, one "R" bracket, and one "R2" bracket.


"WR38" - 1968 Big Block Complete Bracket Kit - $76

Kit includes one "J" bracket, one "AX005" insulator, one "Q" bracket, one "O" bracket, one "P" bracket, one "L" bracket, two "M" brackets, and one "R" bracket.

"K" bracket is also required if used on C-Body applications and must be purchased separately.

WR38A.jpg (8292 bytes) "WR38A" - 1968 Big Block A-Body Complete Bracket Kit - $90

Kit includes one "J" bracket, one "K" bracket, two "AX005" insulators, one "Q" bracket, one "O" bracket, two "M" brackets, one "L" bracket, one "P" bracket, and one "R2" bracket.

wr49.JPG (10605 bytes) "WR49" - 1969 Big Block Complete Bracket Kit - $75

Kit includes one "J" bracket, one "AX005" insulator, three "0599" insulators, one "F" bracket, one "N" bracket, one "L" bracket, two "M" brackets, one "H" bracket, and one "G" bracket.

"K" bracket is also required if used on C-Body applications and must be purchased separately.

WR49A.jpg (7204 bytes) "WR49A" - 1969 Big Block A-Body Complete Bracket Kit - $87

Kit includes one "J" bracket, one "K" bracket, two "AX005" insulators, one "F" bracket, one "N" bracket, two "M" brackets, one "L" bracket, one "H" bracket, and one "R2" bracket.

wr43.JPG (10573 bytes) "WR43" - 1970-1971 Big Block Complete Bracket Kit - $70

Kit includes one "J" bracket, one "AX005" insulator, three "0599" insulators, one "F" bracket, one "N" bracket, two "M" brackets, one "H" bracket, and one "G" bracket.

"K" bracket is also required if used on C-Body applications and must be purchased separately.

wr69.JPG (9735 bytes) "WR69" - 1972-1978 Big Block Complete Bracket Kit - $70

Kit includes one "J" bracket, one "AX005" insulator, three "0599" insulators, one "F" bracket, one "N" bracket, two "M" brackets, one "H1" bracket, and one "G" bracket.

"K" bracket is also required if used on C-Body applications and must be purchased separately.

"095" -  Vacuum Control Connector 1/8" - $29 Each

Excellent reproduction of the 1/8" vacuum control connector used on the intake manifold of cars WITHOUT power brakes that have Air Conditioning or Air Grabber.  Also used on 1960-65 cars WITHOUT power brakes requiring vacuum for the heater controls.  Not used on 1968-69 Charger.  Machined with the details of originals with 3/8" NPT threads and silver cadmium plated as original.  Reference Chrysler part number 1858 955 and 2863 486.

"096" -  Vacuum Control Connector 1/4" - $29 Each

Excellent reproduction of the 1/4" vacuum control connector used on the intake manifold of 1968-69 Chargers WITHOUT power brakes to supply vacuum to the headlight door actuator.  Also used on 1968-69 426 Hemi equipped cars WITHOUT power brakes.  Machined with the details of originals with 3/8" NPT threads and silver cadmium plated as original.  Reference Chrysler part number 2658 625.

"1223" - Small Block Exhaust Manifold Conical Washer - $1.50 each

Excellent reproduction of the thick conical washer used under every bolt and nut that secures Small Block exhaust manifolds to the head surface. 10-12 washers required for each engine. Washers sold individually.  Reference Chrysler part number 2121 223.

"OML" - 1968-70 340 HP Exhaust Manifold Sleeve Nut - $7 each

Correct 5/16-24 UNF x 2.50" hex head sleeve nut.  Two required per vehicle.



"OMW" - SHORT Big Block Exhaust Manifold Sleeve Nut - $7 each

Correct 3/8-24 UNF x 1.94" hex head sleeve nut.  See kits below for required quantities for each vehicle.



"OMK" - LONG Big Block Exhaust Manifold Sleeve Nut - $7 each

Correct 3/8-24 UNF x 2.84" hex head sleeve nut.  See kits below for required quantities for each vehicle.



8135.JPG (9087 bytes) "8135" - 1968-70 340 HP Exhaust Manifold Fastener Kit - $45 per kit

Correct bolts, studs, nuts, conical washers, & sleeve nuts.

8023.jpg (8766 bytes) "8023" - 1971-74 340 & 360 HP Exhaust Manifold Fastener Kit - $47 per kit

Correct bolts, hex collar stud, studs, nuts, & conical washers.

"8062"- 1962-65 Street Wedge Exhaust Manifold Fastener Kit - $38 per kit

Studs, nuts, & sleeve nuts.  For use on 361, 383, and 426 big block B-Body applications.

"8063"- 1967 440 HP Exhaust Manifold Fastener Kit - $45 per kit

Studs, nuts, & sleeve nuts.



8065.JPG (8085 bytes) "8065" - 1968-74 383/440 HP Exhaust Manifold Fastener Kit - $35 per kit

B & E-Body ONLY!

Studs, nuts, & sleeve nuts.

8065a.JPG (7987 bytes) "8065A" - 1967-69 383/440 HP Exhaust Manifold Fastener Kit - $50 per kit

A-Body ONLY!

Studs, nuts, & sleeve nuts.

8065c.JPG (9651 bytes) "8065C" - 1968-71 383/440 HP Exhaust Manifold Fastener Kit - $55 per kit

C-Body ONLY!

Studs, nuts, & sleeve nuts.

8066.JPG (10157 bytes) "8066" - 1966-71 426 Hemi Exhaust Manifold Fastener Kit - $65 per kit

Correct head marking bolts and conical washers.

8067.jpg (8197 bytes) "8067" - Max Wedge Exhaust Manifold Fastener Kit - $34 per kit

Studs, nuts, & sleeve nuts.

Brackets are correct gauge steel & thermo-plastic coated where applicable.

Brackets may require minor bending or fitting to route wires correctly.
