"BTBSET" - 1967-1969 B-Body Battery Tray Brace Set - $38 3-Piece Set

Battery tray braces are manufactured to OEM specifications and dipped in corrosion resistant primer. Kits include correct J-nuts and mounting bolts.

View Proper Component Orientation


"BTB1" - 1967-1970 B-Body Lower Battery Tray Brace - $13 Each

Battery tray braces are manufactured to OEM specifications and dipped in corrosion resistant primer. Part includes correct J-nut and pointed mounting bolt for battery tray.  (2) required per vehicle for 1967-69 and only (1) brace required for 1970 applications.


"BTB2" - 1966-1969 B-Body Upper Battery Tray Brace - $13 Each

Battery tray braces are manufactured to OEM specifications and dipped in corrosion resistant primer. Part includes correct J-nut and mounting bolt for battery tray.  (1) required per vehicle.

btb3.jpg (3587 bytes) "BTB3" - 1966 & 1971-1972 B-Body and 1970-1974 E-Body Battery Tray Brace - $13 Each

Battery tray braces are manufactured to OEM specifications and dipped in corrosion resistant primer. Part includes correct J-nut and pointed mounting bolt for battery tray.  (2) required per vehicle for 1966 and only (1) brace required for all other applications.

btb4.jpg (4089 bytes) "BTB4" - 1963-1976 A-Body Battery Tray Brace - $13 Each

Battery tray braces are manufactured to OEM specifications and dipped in corrosion resistant primer. Part includes correct J-nut and pointed mounting bolt for battery tray.  (1) required per vehicle.

"BHD01" - Battery Hold Down Kit - $21 Each Kit

1960-1965 battery hold down kit for all body styles includes the correct zinc phosphate J-bolts with CORRECT heavy gauge wing nuts, 1/4" flat washers, and a thermo-plastic coated cross bracket.  Short J-bolt must be shortened 1" for A-Body applications.

"BHD01S" -  Battery Hold Down Strap - $17 Each

1960-1965 battery hold down strap for all body styles includes a thermo-plastic coated cross bracket.

"BHD03" -  Battery Hold Down Kit - $21 Each Kit

1966-1969 battery hold down kit for all body styles includes the correct zinc phosphate J-bolts with CORRECT heavy gauge wing nuts, 1/4" flat washers, and a thermo-plastic coated cross bracket.  Short J-bolt must be shortened 1" for 1966 A-Body applications.

"BHD03S" -  Battery Hold Down Strap - $17 Each

1966-1969 battery hold down strap for all body styles includes a thermo-plastic coated cross bracket.

"BHD04" - Battery Hold Down Kit - $21 Each Kit

1970-1971 B & E-Body and 1970-1976 A-Body battery hold down kit includes the correct zinc phosphate J-bolts with hex coni SEMS nuts and a thermo-plastic coated cross bracket.

"BHD04S" - Battery Hold Down Strap - $17 Each

1970-1971 B- & E-Body and 1970-1976 A-Body battery hold down strap only includes a thermo-plastic coated cross bracket.

"BHD05" - Battery Hold Down Kit - $21 Each Kit

1972-1974 B- & E-Body battery hold down kit includes the correct zinc phosphate J-bolts with hex coni SEMS nuts, fender mounting bolt, and a thermo-plastic coated cross bracket.

"BHD05S" - Battery Hold Down Strap - $17 Each

1972-1974 B- & E-Body battery hold down strap only includes a thermo-plastic coated cross bracket.

"BHD06" - Battery Hold Down Kit - $21 Each Kit

1966 & later C-Body battery hold down kit includes the correct zinc phosphate J-bolt with hex coni SEMS nuts and a thermo-plastic coated cross bracket.

"BHD06S" - Battery Hold Down Strap - $17 Each

1966 & later C-Body battery hold down strap only includes thermo-plastic coated cross bracket.


"JB-1" - J-Bolt Set - $9 Each Kit

1970-1971 Battery Hold Down J-Bolt Kit

Zinc phosphate J-bolts with CORRECT 1" OD washer sems nuts.




"JB-2" - J-Bolt Set - $7 Each Kit

1960-1969 Battery Hold Down J-Bolt Set

Zinc phosphate J-bolts with CORRECT heavy gauge wing nuts and 1/4" flat washers.  Short J-bolt must be shortened 1" for 1964-66 A-Body applications.




Used on all battery hold down engine side applications.

Zinc phosphate as original.


Used on all battery hold down fender side applications for A, B, and E-Body from 1970-72.

Zinc phosphate as original.


Used on all battery hold down fender side applications for A and B-Body from 1960-69.  J-bolt must be shortened 1" for 1964-66 A-Body applications.

Zinc phosphate as original.


Used on 1960-1969 battery hold down J-bolts.  Stamped from heavy gauge steel to duplicate original dimensions.  Zinc plated for proper appearance and a lasting shine.

2 nuts required per vehicle.

5006.jpg (4520 bytes) "5006" - Battery Hold Down Nuts - $3 Each

Used on 1970-1976 battery hold down J-bolts.  1/4-20UNC thread with tall nut and 1" diameter conical washer.  Correct in every dimension and black phosphate finished as original.

2 nuts required per vehicle.

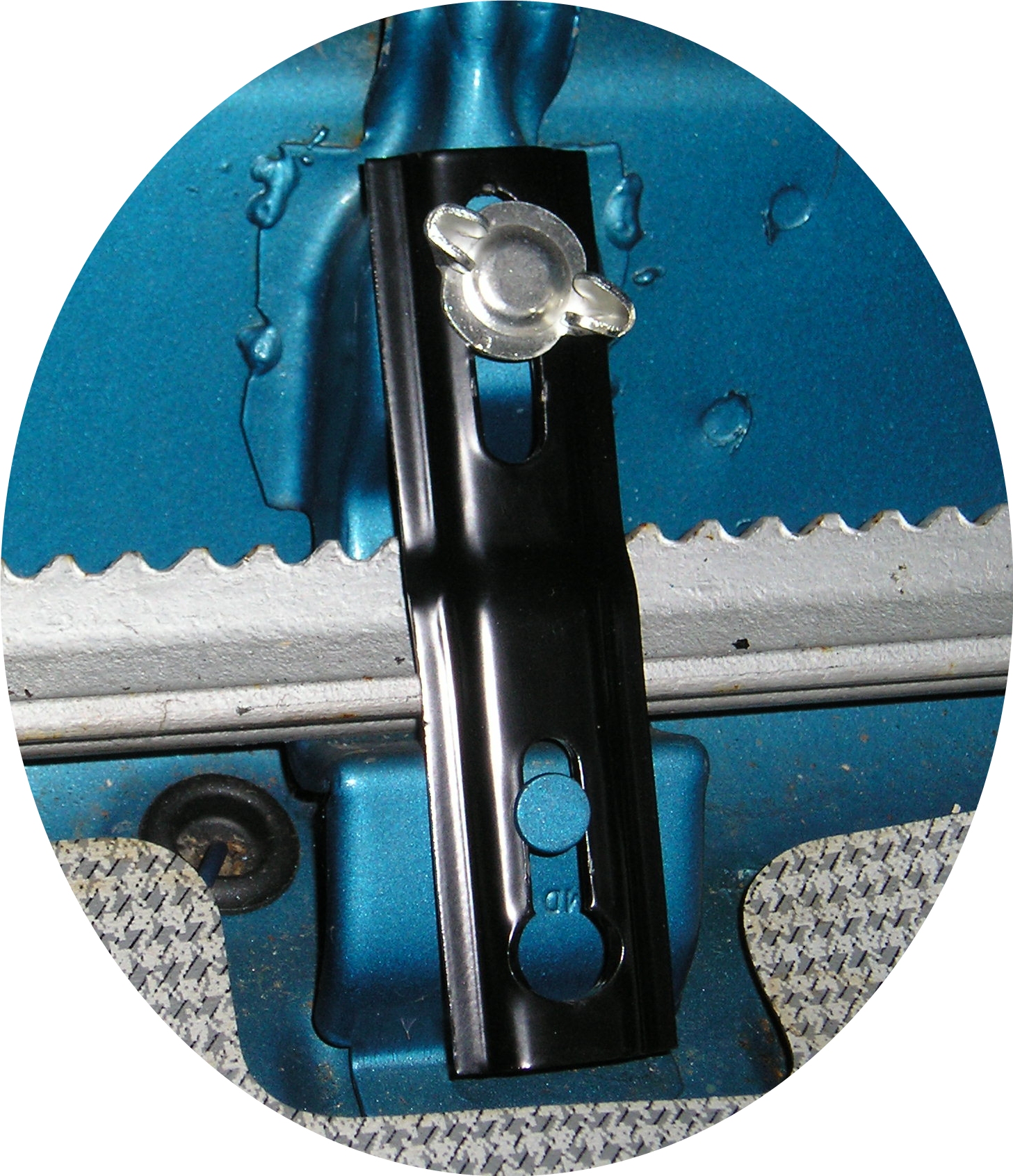

"2120" - 1968-70 B-Body Bumper Jack Bar Retainer Kit - $15 Each

An excellent reproduction of the often missing 1968-70 B-Body bumper jack bar retainer.  Not used on Charger or convertible models.  Formed from correct gauge steel then powder coated low gloss black.  Includes zinc plated 1/4-20 wing screw to secure retainer and jack bar.

Click here to view installed components.





"0499" - Speedometer Cable Bracket - $12 Each

This bracket holds the speedometer cable and brake line to the left inner fender well on 1966-1970 B-Body cars.  Made from the correct gauge steel and clear zinc plated as original.  Comes with correct mounting screw.

Click here to view photograph for proper location.






"0500" - Lower Positive Battery Cable Routing Bracket - $13 Each

This bracket holds the positive battery cable to the left frame rail on 1966-1970 B-Body cars.  Made from the correct gauge steel and zinc plated for longevity with proper thermo-plastic covering.  Comes with correct hex head mounting screw.

Click here to view photograph for proper location.


"0501" - Upper Positive Battery Cable Routing Bracket - $13 Each

This bracket holds the positive battery cable to the left inner fender well on 1966-1970 B-Body cars.  Made from the correct gauge steel and zinc plated for longevity with proper thermo-plastic covering.  Comes with correct mounting screw.

Click here to view photograph for proper location.

FRBKIT.jpg (5044 bytes) "FRBKIT" - B-Body Speedo Cable/Brake Line/Battery Cable Bracket Kit - $34 per Set

This bracket kit includes one of each of #0499, #0500, and #0501.  Used on 1966-1970 B-Body cars.  See description of individual parts above for application and part location.

Click here to view photograph for proper location.


"0502" - Positive Battery Cable Routing Bracket - $16 Each



This bracket holds the positive battery cable to the left frame rail on 1970-1974 E-Body and 1971-1974 B-Body cars.  Made from the correct gauge steel and zinc plated for longevity with proper thermo-plastic covering.  Comes with correct hex head mounting screw.

"LPB6869" - Front License Plate Mounting Bracket - $22 each

Very nice reproduction of the front license plate mounting bracket used on 1970-1972 Barracuda and 1968-1969 Charger.  Made from correct gauge steel & powder coated low gloss black for better appearance and long life.  License plate mounting hardware included along with rubber bumper.  Reference Chrysler part number 2856 666.

"LPB7071" - Front License Plate Mounting Bracket - $25 each

Very nice reproduction of the front license plate mounting bracket used on 1970-1971 Challenger.  Made from correct gauge steel & powder coated low gloss black for better appearance and long life.  License plate mounting hardware included.  Reference Chrysler part number 2962 336.

"LPB7274" - Front License Plate Mounting Bracket - $20 each

Very nice reproduction of the front license plate mounting bracket used on 1972-1974 Challenger & 1973-74 Barracuda.  Made from correct gauge steel & powder coated low gloss black for better appearance and long life.   License plate mounting hardware included along with rubber bumper.  Reference Chrysler part number 3595 074.
